The firebox / insert SUPER 9

cast iron firebox - single sided

Réf : F1300

No reviews so far

Interested in this product ?

Features

The firebox / insert SUPER 9 Technical information

Générales

Smoke outlet : 250 mm
Weight : 230 kg version de base
Max logs size : 80 cm
In compliance with : CEN/TS15883

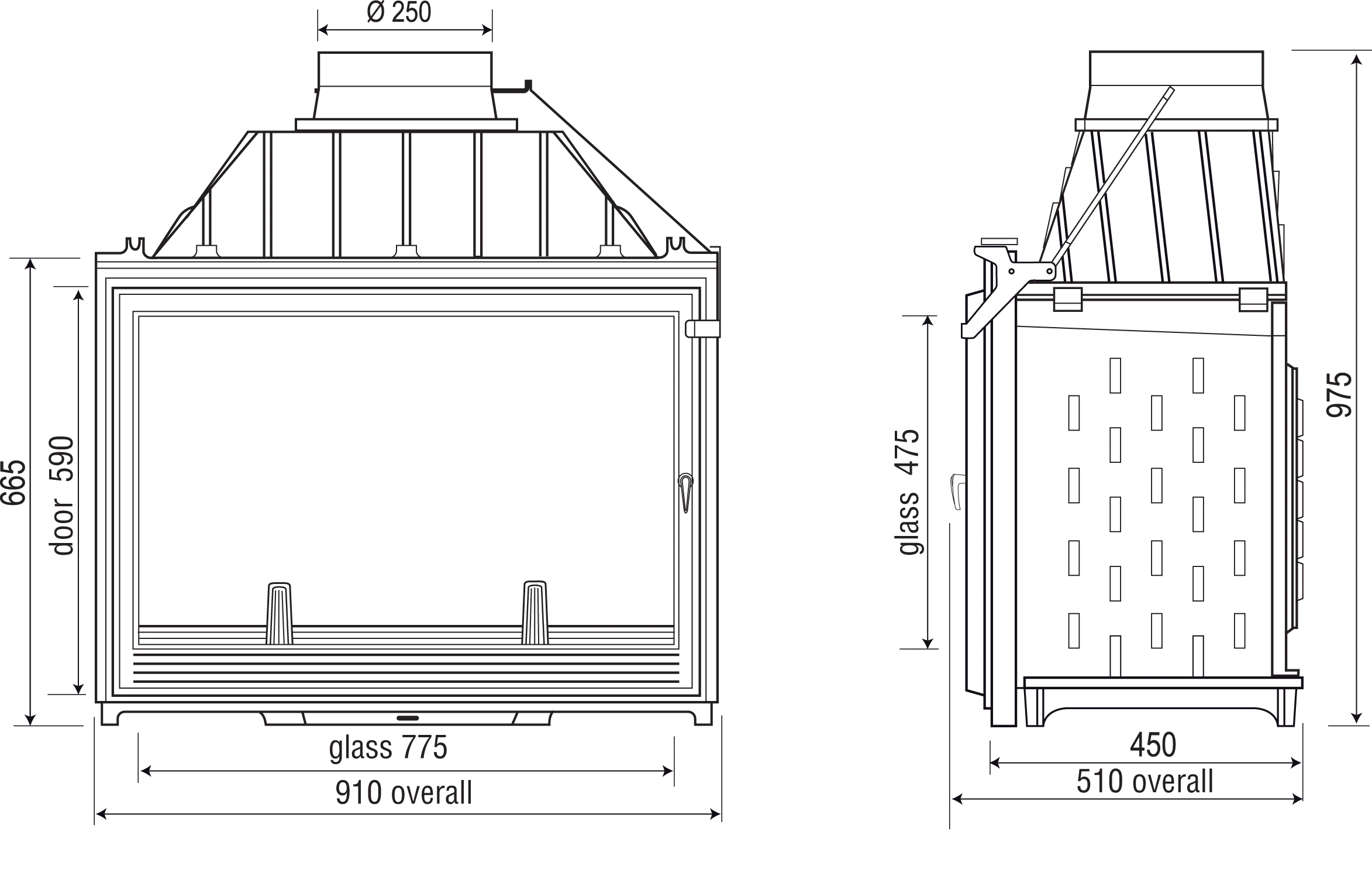

Size : L 91 x P 51 x H 98 cm
Maximum hourly consumption : 4 kg/h

Type de contrôle de régulation

Régulation manuelle

Nominal output : 12,7 kW
Maximum output : 24 kW (indicatif)
CO Rate : 0,08 %
Particles emission (mg/Nm3) : 29 mg/Nm3
Efficiency : 77,3 %

Not optional: swing door : the door is locked on closing when the damper is closed, double combustion, cast iron interior finishing, cast iron firebox, damper with adjustable flow rate Optional(s): black-screen printed glass, lift and swing door, convector (installed on firebox with 2 caps and ø 125 sleeve), uplift chair adjustable from 300 to 550, adapter for double combustion air connection / ø 100 sheath Configuration: single sided
