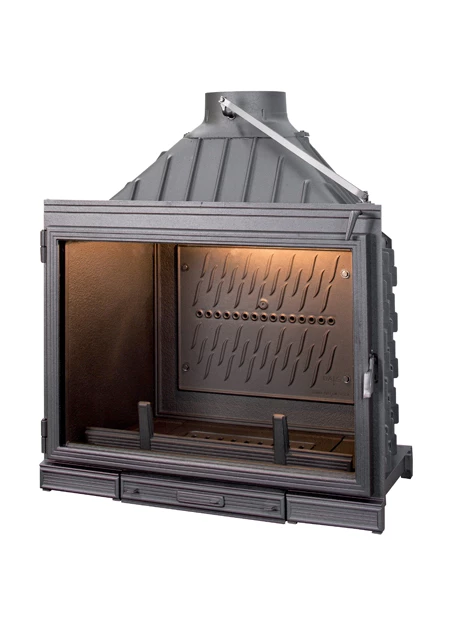

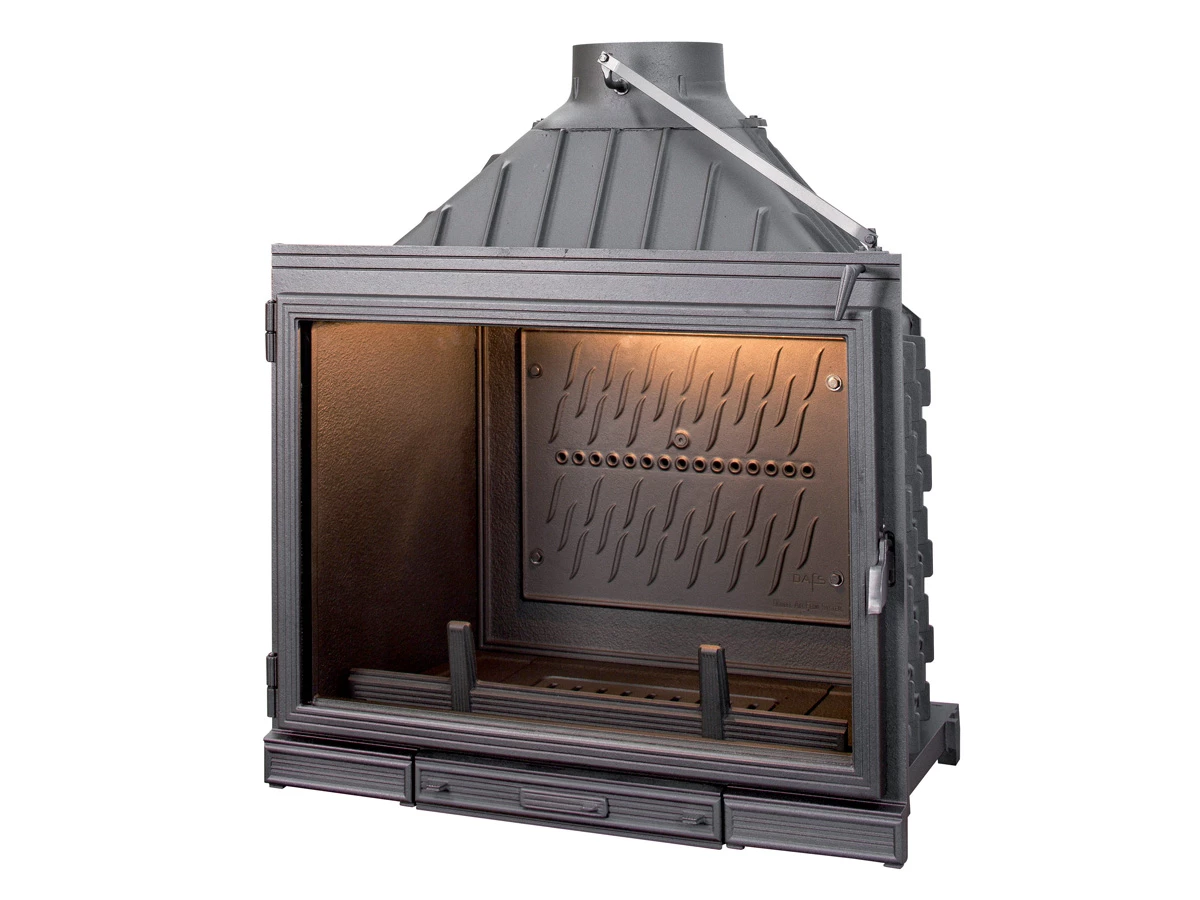

The firebox / insert SUPER 8

cast iron firebox - single sided

Réf : F0600

No reviews so far
Features
The firebox / insert SUPER 8 Technical information

Générales

  • Smoke outlet : 200 mm
  • Weight : 185 kg version de base
  • Max logs size : 65 cm
  • In compliance with : EN 13229

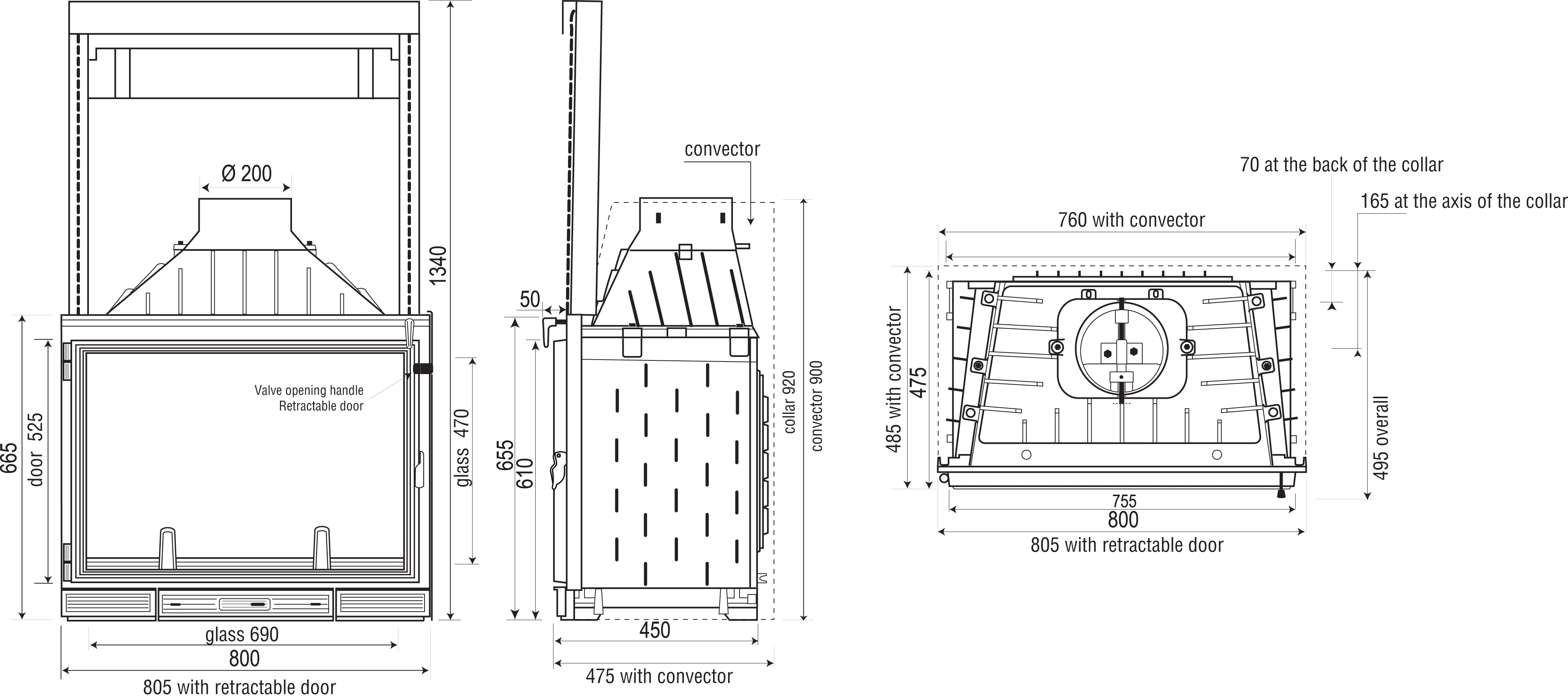

  • Size : L 80 x P 50 x H 92 cm
  • Maximum hourly consumption : 3,5 kg/h

Type de contrôle de régulation

Régulation manuelle
  • Nominal output : 10 kW
  • Maximum output : 20 kW (indicatif)
  • CO Rate : 0,09 %
  • Particles emission (mg/Nm3) : 32 mg/Nm3
  • Efficiency : 75 %

Not optional: swing door : the door is locked on closing when the damper is closed, double combustion, cast iron interior finishing, cast iron firebox, damper with adjustable flow rate Optional(s): lift and swing door, convector (installed on firebox with 2 caps and ø 125 sleeve), self cleaning glass (not black screen printed), uplift chair adjustable from 300 to 550, adapter for double combustion air connection / ø 100 sheath Configuration: single sided

SUPER 8
