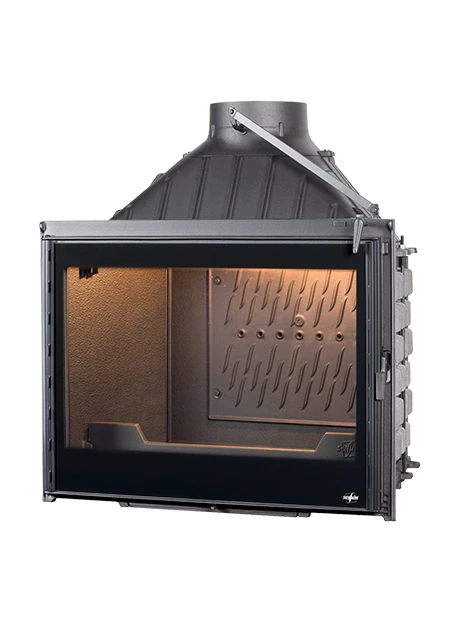

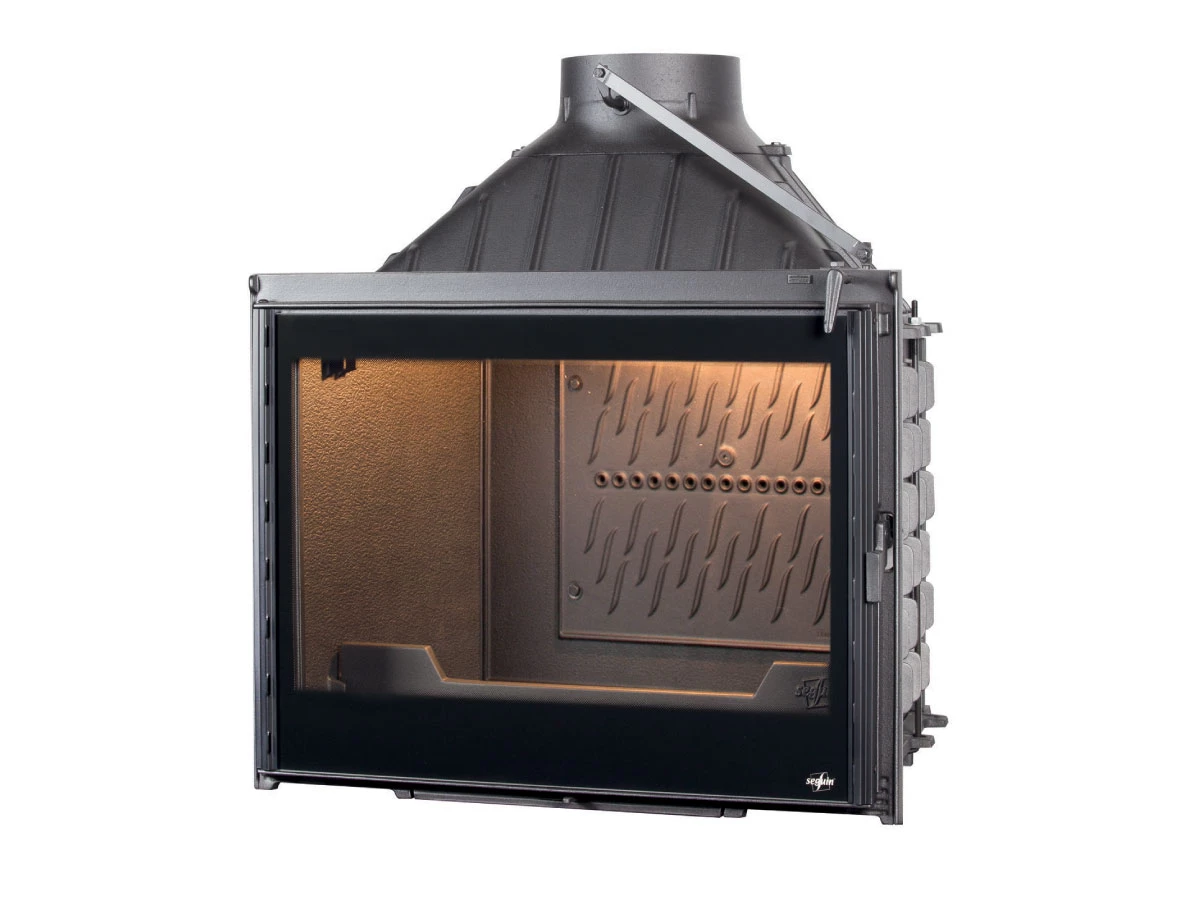

The firebox / insert EUROPA 7

cast iron fireplace - front side

Réf : F0400

No reviews so far
Features
The firebox / insert EUROPA 7 Technical information

Générales

  • Smoke outlet : 200 mm
  • Weight : 150 kg
  • Max logs size : 55 cm

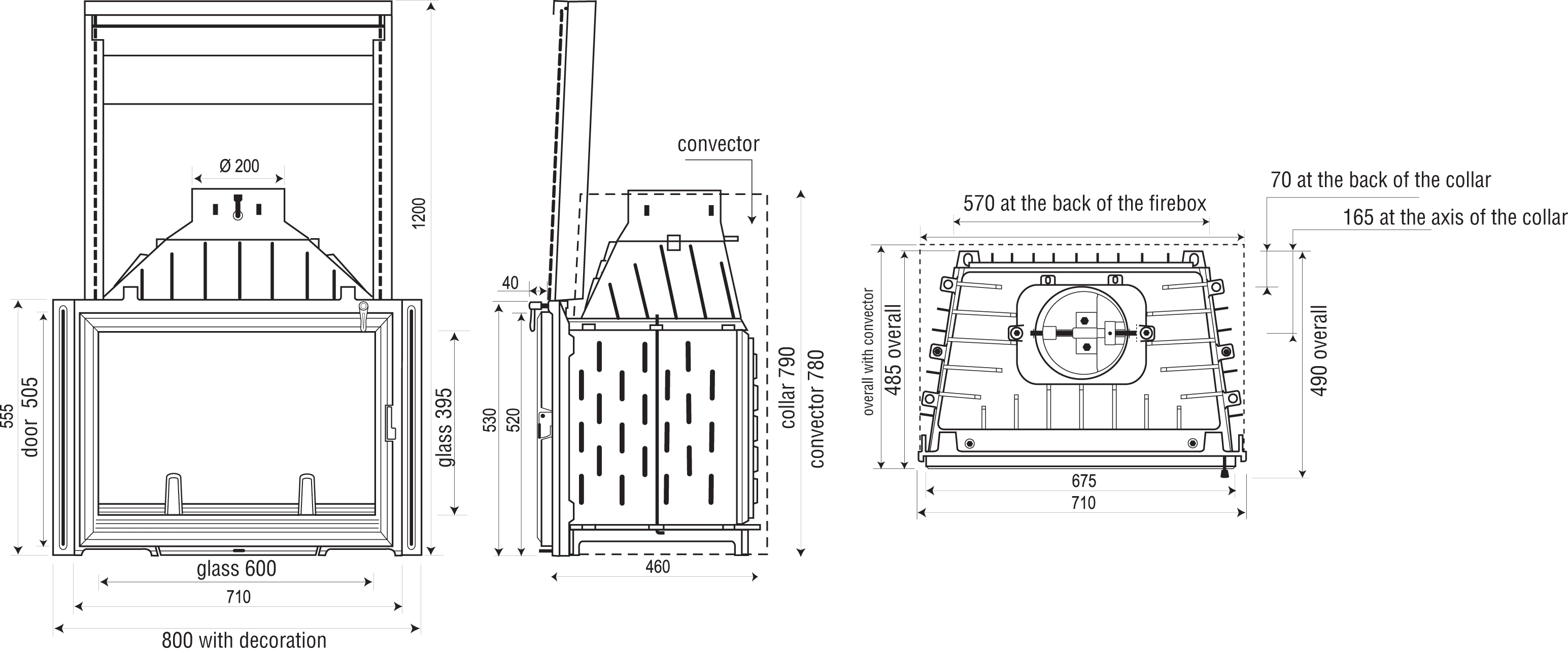

  • Size : L 71 x P 49 x H 79 cm
  • Maximum hourly consumption : 3 kg/h

Type de contrôle de régulation

Régulation manuelle
  • Seasonal energy efficiency : 68 %
  • Nominal output : 9,8 kW
  • CO Rate : 0,1 %
  • Particles emission (mg/Nm3) : 25 mg/Nm3
  • Efficiency : 78,8 %

As standard: swing door : the door cannot be opened when the damper is closed, double combustion, cast iron back, cast iron fireplace, damper with adjustable flow rate Optional(s): black-screen printed glass, lift and swing door, convector (installed on fireplace with 2 caps and ø 125 sleeve), self cleaning glass, fireplace extension kit adjustable from 300 to 550 in height, adapter for double combustion air connection / ø 100 air duct Configuration: front side Variations: front side EVOLUTION version with cast iron door, right or left side glass EVOLUTION version with steel design door or cast iron door, front side EVOLUTION PLUS version, 3 sided glasses EVOLUTION version with cast iron door

EUROPA 7
